Makrolon multi UV – Bayer multiwall polycarbonate sheets
Multiwall polycarbonate sheet by Bayer - Makrolon multi UV is produced from completely pure original resins with single side (standard) or two sides UV coating
Sheet dimensions: standard 2.1 x 6.0m (cut to measure optional)
Colors: transparent, opal white, dim ( blue and green available on request)
Special types:
IQ-Relax
\/ multiwall opal white sheet that offers extremely high solar radiation resistance
No Drop
\/ the sheet is equipped with “no drop” layer to prevent condensation on the interior surface
CC Climate Control
\/ reflects the solar radiation and keep the warmth inside
Bayer Sheet Europe is a part of Bayer MaterialScience, one of the best known manufacturers of top quality polycarbonate recognized by a strong brand name Makrolon . The exceptional quality of Makrolon sheets is based on quality raw materials produced by the parent company as well as on Bayer MaterialScience leadership role in developing the technology of extrusion of thermoplastic materials.
| Type | Structure |
Thickness [mm] |
Weight [kg/m2] |
Rib Distance rebara [mm] |
Heat transfer coefficient [W/m2K] |
Light transmittance [%] (clear 1099) |
Min. cold bending radius [mm] |
Special types | |
|---|---|---|---|---|---|---|---|---|---|
|
Multi UV
2/4-6 |
 | 4 | 0.8 | 6 | 4.1 | 79 | 700 | Makrolon Multi UV 2 4_6.pdf | |
|
Multi UV
2/6-6 |
| 6 | 1.3 | 6 | 3.7 | 79 | 900 | Makrolon Multi UV 2 6_6.pdf | |
|
Multi UV
2/8-10.5 |
| 8 | 1.5 | 10.5 | 3.6 | 81 | 1200 | no drop | Makrolon Multi UV 2 8_10.5.pdf |
|
Multi UV
2/10-10.5 |
| 10 | 1.7 | 10.5 | 3.1 | 80 | 1500 |
no drop
IQ relax | Makrolon Multi UV 2 10_10.5.pdf |
|
Multi UV
2/16-30 |
| 16 | 3.6 | 30 | 3.1 | 80 | 2400 | no drop | Makrolon Multi UV 2 16_30.pdf |
|
Multi UV
3/16-20 |
 | 16 | 2.6 | 20 | 2.2 | 74 | 2400 | no drop | Makrolon Multi UV 3 16_20.pdf |
|
Multi UV
4/10-6 |
 | 10 | 1.75 | 6 | 2.5 | 68 | 1500 | IQ-Relax | Makrolon Multi UV 4 10_6.pdf |
|
Multi UV
6/16-20 |
 | 16 | 2.8 | 20 | 1.8 | 59 | 2400 | IQ-Relax | Makrolon Multi UV 6 16_20.pdf |
|
Multi UV
6/20-20 |
| 20 | 3.1 | 20 | 1.6 | 58 | 3000 | IQ-Relax | Makrolon Multi UV 6 20_20.pdf |
|
Multi UV
5X/16-25 |
 | 16 | 2.4 | 25 | 2 | 70 | 2400 |
IQ-Relax
Climate Control | Makrolon Multi UV 5X 16_25.pdf |
|
Multi UV
5M/25-20 |
 | 25 | 3.4 | 20 | 1.4 | 49 |
IQ-Relax
Climate Control | Makrolon Multi UV 5M 25_20.pdf | |
|
Multi UV
5M/32-20 |
| 32 | 3.7 | 20 | 1.2 | 48 | IQ-Relax | Makrolon Multi UV 5M 32_20.pdf | |
|
Multi UV
5M/40-20 |
| 40 | 4.2 | 20 | 1.1 | 47 | IQ-Relax | Makrolon Multi UV 5M 40_20.pdf |

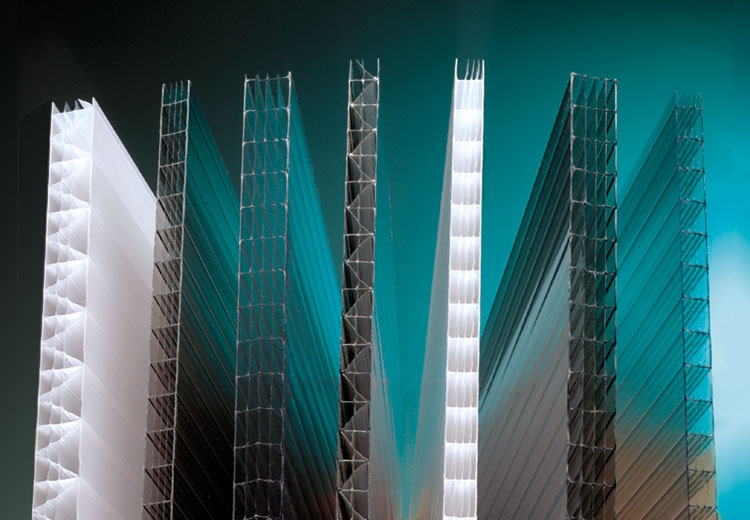

Macrolux STD - Koscon Multiwall polycarbonate sheets
Multiwall polycarbonate sheet of a well-known Swiss manufacturer Koscon Macrolux STD. A Long Life sheet with UV protective coating on the outer surface is a standard, while the custom-made Extra Life sheet is protected from the effects of UV rays radiation on both sides . Sheets with increased extra strong protection from solar radiation are also available (HS, Athermic, Reflect...).
Sheet dimensions: standard 2.1 x 6.0 m (cut to measure optional).
Colors: transparent, opal white, dim (blue and green available on request).
Koscon Industrial S.A. is a reputable production and engineering Swiss company and global leader in the design and manufacture of polycarbonate sheets and systems. They offer innovative technical solutions and a vast array of products.
| Type | Structure |
Thickness [mm] |
Weight [kg/m2] |
Rib Distance rebara [mm] |
Heat transfer coefficient [W/m2K] |
Light transmittance [%] (clear 1099) |
Min. cold bending radius [mm] |
Special types | |
|---|---|---|---|---|---|---|---|---|---|
|
STD
2W 4mm |
| 4 | 0.8 | 6 | 3.6 | 84 | 600 |
Athermic
BiColor Reflect | Macrolux STD 2W 4mm.pdf |
|
STD
2W 6mm |
| 6 | 1.3 | 6 | 3.5 | 82 | 900 |
Athermic
BiColor Reflect | Macrolux STD 2W 6mm.pdf |
|
STD
2W 8mm |
| 8 | 1.5 | 9 | 3.2 | 81 | 1200 |
Athermic
BiColor Reflect | Macrolux STD 2W 8mm.pdf |
|
STD
2W 10mm |
| 10 | 1.7 | 9 | 3.1 | 80 | 1500 |
Athermic
BiColor Reflect | Macrolux STD 2W 10mm.pdf |
|
LL STD
3Q 6 mm |
| 6 | 1.3 | 8 | 3.4 | 75 | 900 |
Athermic
BiColor Reflect | Macrolux STD 3Q 6mm.pdf |
|
LL STD
3Q 8 mm |
| 8 | 1.5 | 8 | 3.0 | 75 | 1200 |
Athermic
BiColor Reflect | Macrolux STD 3Q 8mm.pdf |
|
LL STD
3Q 10 mm |
| 10 | 1.7 | 8 | 2.7 | 75 | 1500 |
Athermic
BiColor Reflect | Macrolux STD 3Q 10mm.pdf |
|
LL STD
3W 16 mm |
| 16 | 2.7 | 20 | 2.3 | 76 | 2880 |
Athermic
BiColor Reflect | Macrolux STD 3W 16mm.pdf |
|
LL STD
4W 6 mm |
 | 6 | 1.3 | 3.2 | 80 | 1200 |
Athermic
BiColor Reflect | Macrolux STD 4W 6mm.pdf | |
|
LL STD
4W 10 mm |
| 10 | 1.75 | 2.5 | 79 | 1750 |
Athermic
BiColor Reflect | Macrolux STD 4W 10mm.pdf | |
|
LL STD
5W 16 mm |
 | 16 | 2.7 | 20 | 1.9 | 62 | 1200 |
Athermic
BiColor Reflect | Macrolux STD 5W 16mm.pdf |
|
LL STD
5W 25 mm |
| 25 | 3.4 | 20 | 1.6 | 60 | 1750 |
Athermic
BiColor Reflect | Macrolux STD 5W 20mm.pdf |
|
LL STD
5M 25 mm |
 | 25 | 3.1 | 32 | 1.9 | 60 | Macrolux STD 5M 25mm.pdf | ||
|
LL STD
5M 35 mm |
| 35 | 3.3 | 32 | 1.4 | 60 | Macrolux STD 5M 35mm.pdf | ||
|
LL STD
5X 16 mm |
| 16 | 2.5 | 14 | 2.0 | 62 | 2400 | BiColor | Macrolux STD 5X 16mm.pdf |
|
LL STD
HC 16 mm |
 | 16 | 2.5 | 2.0 | 60 | 2400 | Macrolux STD HC 16mm.pdf | ||
|
LL STD
10X 16 mm |
 | 16 | 2.8 | 14 | 1.7 | 45 | 4000 | Macrolux STD 10X 16mm.pdf | |
|
LL STD
10X 20 mm |
| 20 | 3.2 | 14 | 1.5 | 40 | 5000 | Macrolux STD 10X 20mm.pdf | |
|
LL STD
10X 25 mm |
| 25 | 3.4 | 14 | 1.3 | 38 | 6250 | Macrolux STD 10X 25mm.pdf | |
|
LL STD
10X 32 mm |
| 32 | 3.7 | 14 | 1.1 | 34 | ne | Macrolux STD 10X 32mm.pdf | |
|
LL STD
10X 40 mm |
| 40 | 4.3 | 14 | 1.0 | 28 | ne | Macrolux STD 10X 40mm.pdf | |
|
LL STD
10W 50 mm |
 | 50 | 5.0 | 20 | 0.9 | 37 | Macrolux STD 10W 50mm.pdf | ||
|
LL STD
10W 55 mm |
| 55 | 5.2 | 20 | 0.8 | 36 | Macrolux STD 10W 55mm.pdf | ||
|
LL STD
10W 60 mm |
| 60 | 6.0 | 20 | 0.8 | 31 | Macrolux STD 10W 60mm.pdf |
